Trex Railing

Trex composite decking materials

Select from a variety of Trex deck railing solutions, offering composite and aluminum rail choices tailored to suit any style preference and financial plan.

Trex Signature® Railing – BEST

Trex Signature Aluminum Glass Railing Plainfield

Trex Signature Railing offers a myriad of colors and configurations. You can opt for traditional vertical aluminum balusters, sleek and modern glass panels, industrial mesh, or horizontal rod rails to complement your landscape. There are multiple options to explore.

Trex Signature® Railing – Color Options:

Trex Signature Railing Aluminum Charcoal Black Color
Charcoal Black
Trex Signature Railing Aluminum Charcoal Bronze Color
Bronze
Trex Signature Railing Aluminum Charcoal Classic White Color
Classic White

Trex Signature® Railing Components

The Trex Signature® system unveils itself through a simple 3-step process. Firstly, opt for Trex Signature® aluminum posts, complete with a cap and skirt, for the initial two steps. Then, seamlessly transition to Step 3 by pairing them with either a rail and baluster kit or a rail and rod kit. Alternatively, if preferred, begin with Trex composite post sleeves, including caps and skirts for Steps 1, 2a, and 2b, before moving on to Step 3.

1. Post Sleeve
2a. Post Sleeve Cap
2b. Post Sleeve Skirt
3. Signature Rail & Infill Options

For an added touch of functionality fused with elegance, all options can be enhanced with cocktail railing, except for the Glass Rail Kit.

Trex Signature® Railing – Infill Options

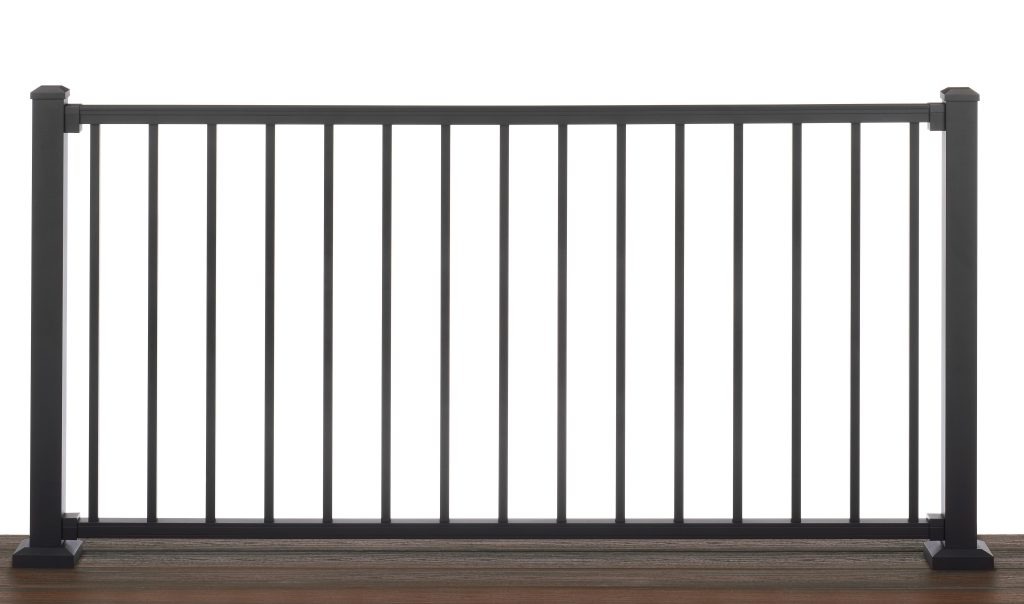

Aluminum Railing

Trex Signature Aluminum railing is available in two heights and three lengths. The traditional vertical posts can be customized using aluminum or composite posts.

Mesh Railing

Our mesh, crosshatch stainless steel infill adds a striking industrial touch to any outdoor design.



Glass Railing

Tempered glass infill panels seamlessly blend with the surroundings, effectively eliminating unnecessary design elements, thereby allowing unobstructed views to take center stage.

Rod Rail

The horizontal rod railing effortlessly achieves the ultimate design trifecta: it’s sleek, robust, and unmistakably modern in its aesthetic appeal.


Trex Signature® Railing – Posts & Posts Components

Aluminum Post with Cap & Skirt

Aluminum posts can only be used with the Trex Signature® line.

2.5” X 2.5” Actual Dimensions

37” Post – Horizontal: 2.5” x 2.5” x 37” (63mm x 63mm x 939 mm)
43” Post – Horizontal: 2.5” x 2.5” x 43” (63mm x 63mm x 109 cm)
53” Post – Stair (cut-to-length): 2.5” x 2.5” x 53” (63mm x 63mm x 134 cm)


Aluminum Crossover Post

Aluminum posts can only be used with the Trex Signature® line.

2.5” X 2.5” Actual Dimensions

36” Crossover Post – Horizontal (includes crossover bracket): 2.5” x 2.5” x 36” (63mm x 63mm x 914mm)
42” Crossover Post – Horizontal (includes crossover bracket): 2.5” x 2.5” x 42” (63mm x 63mm x 106 cm)



Aluminum Joist Mount Post

Actual External Dimensions of Insert: 3.75” X 3.75” X 7”

For use with 4×4 Composite post sleeve. Use with all Trex railing heights.

63” Aluminum post (cut-to-length)
Aluminum inserts with set screws
1/2” HG Bolts, washers and nuts (not pictured)
Bolt spacing template

Aluminum Surface Mount Post

Actual External Dimensions of Insert: 3.75” X 3.75” X 7”

Can be used as an alternative to a traditional wood post under the post sleeve. Crafted for versatile application, it seamlessly adapts to both deck installations and concrete surfaces with equal ease.

Aluminum inserts with set screws
2.5″ IRC-compliant aluminum post with base


Trex Signature® Railing – Rails, Balusters & Infill Specs

Trex Signature® Railing Panel

Available in 6’ or 8’ lengths and 36” or 42” Rail height for horizontal applications. Only offered with square aluminum balusters.

Includes 1 Pallet of Trex Signature® Railing Panels (20 panels)
Trex Signature® Railing Mounting Hardware must be ordered separately.

Actual Dimensions:
6’ x 36”: 72” x 36” (182 cm x 914 mm)
8’ x 36”: 96” x 36” (243 cm x 914 mm)
6’ x 42”: 72” x 42” (182 cm x 106 cm)
8’ x 42”: 96” x 42” (243 cm x 106 cm)





Trex Signature® Mesh Panel

Available in stainless steel.

Includes Mesh panel

Actual Dimensions:
64″ x 32 – 3/8″ Stainless Steel Mesh
88″ x 32 – 3/8″ Stainless Steel Mesh
88″ x 38 – 3/8″ Stainless Steel Mesh
108 – 3/16″ x 36 – 3/16″ Universal 316 Stainless Steel Mesh – Stair











Stair–rail Kit w/Round Or Square Balusters: Top Rail, Bottom Rail, Round Or Square Balusters, Mounting & Support Hardware

Available in 6’ or 8’ lengths and 36” or 42” Rail height for horizontal and stair applications.

Includes:
Top Rail
Bottom Rail
Square Balusters
Mounting & Support Hardware

Actual Dimensions:
6’ x 36”: 72” x 36” (182 cm x 914mm)
8’ x 36”: 96” x 36” (243 cm x 914mm)
6’ x 42”: 72” x 42” (182 cm x 106 cm)



Horizontal – Rail Kit w/Round Or Square Balusters: Top Rail, Bottom Rail, Square Or Round Balusters, Mounting & Support Hardware

Available in 6’ or 8’ lengths and 36” or 42” Rail height for horizontal and stair applications.

Includes:
Top Rail
Bottom Rail
Round Balusters
Mounting & Support Hardware

Actual Dimensions:
6’ x 36”: 72” x 36” (182 cm x 914 mm)
8’ x 36”: 96” x 36” (243 cm x 914 mm)
6’ x 42”: 72” x 42” (182 cm x 106 cm)
8’ x 42”: 96” x 42” (243 cm x 106 cm)

Rail & Rod Kit

Available in Charcoal Black Rails and Platinum Rods or Bronze Rails and Platinum Rods.

Includes:
Top and Bottom Rail
Vertical Supports
Aluminum Rods
Hardware and Bracket Pack
Anti Rattle Strips

Actual Dimensions:
6’ x 36” (72-in x 36-in (182 cm x 914 mm)) Rail & Rod Kit – Horizontal or Stair
8’ x 36” (96-in x 36-in (243 cm x 914 mm)) Rail & Rod Kit – Horizontal or Stair
6’ x 42” (72-in x 42-in (182 cm x 106 cm)) Rail & Rod Kit – Horizontal or Stair
8’ x 42” (96-in x 42-in (243 cm x 106 cm)) Rail & Rod Kit – Horizontal or Stair

Trex Signature® Glass Rail Kit*

Available with Charcoal Black or Classic White railing. *Glass infill sold separately. Should be sourced locally.

Includes:
Top and Bottom Rail
Hardware and Bracket Pack
Footblock

Actual Dimensions
6’ x 36” (72-in x 36-in (182 cm x 914 mm)) – Horizontal








Trex Signature® Mesh Rail Kit*

Available with Charcoal Black or Bronze railing. *Mesh infill sold separately.

Includes:
Top and Bottom Rail
Hardware and Bracket Pack
Verticals
Anti-rattle Gaskets
Footblock

Actual Dimensions
6’ x 36” (72-in x 36-in (182 cm x 914 mm)) – Horizontal or Stair
8’ x 36” (96-in x 36-in (243 cm x 914 mm)) – Horizontal or Stair
6’ x 42” (72-in x 42-in (182 cm x 106 cm)) – Horizontal or Stair
8’ x 42” (96-in x 42-in (243 cm x 106 cm)) – Horizontal or Stair

Trex Signature® Railing – Accessories & Kits

Fixed Bracket (4-pack) – Horizontal

Includes:
Qty (2) Fixed Top Rail Bracket and Cover–Horizontal
Qty (2) Fixed Bottom Rail Bracket and Cover–Horizontal
Qty (1) Fastener Pack





Fixed Bracket (4-pack) – Stair

Includes:
Qty (1) Fixed Top Rail Bracket 1 and Cover–Stair
Qty (1) Fixed Top Rail Bracket 2 and Cover–Stair
Qty (1) Fixed Bottom Rail Bracket 1 and Cover–Stair
Qty (1) Fixed Bottom Rail Bracket 2 and Cover–Stair
Qty (1) Fastener Pack

Swivel Crossover Bracket Kit – Stair

Includes:
Qty (1) Swivel Crossover Bracket–Stair
Qty (2) Post to Bracket Fasteners








Swivel Bracket – Horizontal

Includes:
Qty (1) Swivel Top Rail Bracket and Cover–Horizontal
Qty (1) Swivel Bottom Rail Bracket and Cover–Horizontal
Qty (2) Fastener Covers
Qty (1) Fastener Pack




Swivel Bracket – Stair

Includes:
Qty (1) Swivel Top Rail Bracket and Cover–Stair
Qty (1) Swivel Bottom Rail Bracket and Cover–Stair
Qty (2) Fastener Covers
Qty (1) Fastener Pack




Compound Swivel Bracket – Stair

Includes:
Qty (1) Compound Swivel Top Rail Bracket and Cover–Stair
Qty (1) Compound Swivel Bottom Rail Bracket and Cover–Stair
Qty (2) Fastener Covers
Qty (1) Fastener Pack



Aluminum Footblock

Includes:
Qty (1) Footblock
Qty (1) Footblock Anchor and fastener








Aluminum Surface Mount Post Hardware

Tailored for precise functionality, it is expressly crafted to facilitate the connection between the 36″ or 42″ Trex Surface Mount Post and a wooden substructure with meticulous attention to detail.

Includes:
Hardware for 2.5″ Trex Signature surface mount psts, 1 aluminum backer plate, 4 HG carriage bolts and 4 HG washers and nuts.

Trex Transcend® Railing – BETTER

Infusing elevated aesthetics with unparalleled performance, Trex Transcend railing offers you the flexibility to mix and match composite rails with either composite or aluminum balusters, enabling you to create a tailored railing look for your outdoor space. With multiple railing options available, you have the freedom to design according to your preferences.

Trex Transcend® Railing – Color Options:

Trex Transcend® Components

Transcend is either a 5-step or 3-step process. Choose Trex post sleeves, caps and skirts (steps 1 & 2). Then choose each component separately for a custom design (steps 3–5).

1. Post Sleeve
2a. Post Sleeve Cap
2b. Post Sleeve Skirt
3a. Top Rail
3b. Bottom Rail
4. Balusters
5. Accessory Infill Kit

Transcend also offers a simple, 3-step option if you choose a rail & baluster kit.

Trex Transcend® Railing – Post & Post Components

4” Post Sleeve

Hollow sleeve that fits over a solid, pressure-treated post or post mount.

Fits over 4”x4” Pressure-Treated Post.

4” X 4” X 39”/108” Actual External Dimension:
4.45” x 4.45” x 40” (113mm x 113mm x 101 cm)
4.45” x 4.45” x 108” (113mm x 113mm x 274 cm)


6″ Post Sleeve

Hollow sleeve that fits over a solid, pressure-treated post or post mount.

Fits over 6”x6” Pressure-Treated Post.

6″x6″ width only available in Classic White.

6” X 6” X 39”/108” Actual External Dimensions:
5.5” x 5.5” x 39” (139 mm x 139 mm x 990 mm)
5.5” x 5.5” x 108” (139 mm x 139 mm x 274 cm)

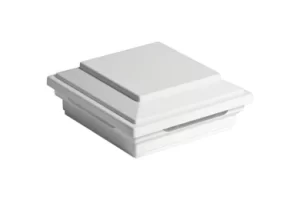

Flat Post Sleeve Cap

12 per box. Cap topping each post is the decorative finish that also withstands the weather.

6” Available in Classic White only.

Actual External Dimensions:
4” x 4”: 4.55” x 4.55” (115 mm x 115 mm)
6” x 6”: 5.55” x 5.55” (140mm x 140mm)




Post Sleeve Skirt

12 per box. Finishing piece at the base of the post that covers any cuts where the decking and railing meet. Usually coordinates with the cap.

6” Available in Classic White only.

Actual External Dimensions:
4” x 4”: 4.55” x 4.55” (115 mm x 115 mm)
6” x 6”: 5.55” x 5.55” (140mm x 140mm)







Trex Transcend® Railing – Rails, Balusters & Infills

Rail & Baluster Kit – Composite

Includes: Crown Top Rail, Universal Bottom Rail, Square Balusters, Baluster Spacers, Adjustable Foot Block and Mounting Hardware

6’ x 36” Rail & Baluster Kit – Composite:
Horizontal – available in Classic White, Charcoal Black and Vintage Lantern
Stair – available in Classic White

8’ x 36” Rail & Baluster Kit – Composite:
Horizontal and Stair – available in Classic White, Charcoal Black and Vintage Lantern

Actual dimensions: 6’ Rail: 67.5 in x 36 in (171 cm x 914 mm); 8’ Rail: 91.5 in x 36 in (232 cm x 914 mm)

Rail & Baluster Kit – Aluminum

Includes: Crown Top Rail, Universal Bottom Rail, Round Aluminum Balusters, Baluster Spacers, Adjustable Foot Block and Mounting Hardware

6’ x 36” Rail & Baluster Kit – Aluminum:
Horizontal and Stair – available in Classic White, Charcoal Black and Vintage Lantern

8’ x 36” Rail & Baluster Kit – Aluminum:
Horizontal and Stair – available in Classic White, Charcoal Black and Vintage Lantern

Actual dimensions: 6’ Rail: 67.5 in x 36 in (171 cm x 914 mm); 8’ Rail: 91.5 in x 36 in (232 cm x 914 mm)

Crown Top Rail

Horizontal rail attached to the top of the balusters and the posts.

Actual Length
Horizontal and Stair – available in Classic White, Charcoal Black and Vintage Lantern

6’ Rail: 67.5” (171 cm)
8’ Rail: 91.5” (232 cm)













Transcend Universal Top/Bottom Rail

The horizontal rail is affixed to both the top and bottom of the balusters and the posts. Additionally, the top rail portion serves as a base for the installation of a deck board, functioning as a cocktail rail.

Actual Length
6’ Rail:67.5” (171 cm)
8’ Rail:91.5” (232 cm)













Round Aluminum Baluster

20 per pack
Vertical rungs–sometimes called spindles–that fill the space between posts.

Actual Dimensions
36” Rail Height: .75” x 30.25” (19 mm x 768 mm)
42” Rail Height: .75” x 36.25” (19 mm x 920 mm)


Square Baluster

16 per pack
Vertical rungs–sometimes called spindles–that fill the space between posts.

Actual Dimensions
36” Rail Height: 1.418” x 1.418” x 30.375” (36 mm x 36 mm x 771 mm)
42” Rail Height: 1.418” x 1.418” x 36.375” (36 mm x 36 mm x 923 mm)


Glass Panel Accessory Kit

Glass panel mounting hardware; glass panel not included.

6’ Rail: 67.5” (171 cm)








Accessory Infill Kit

Available in 6’ and 8’ lengths for square, colonial and round balusters; horizontal and stair applications.

Includes: 2 Baluster Spacers, Adjustable Foot Block, Mounting Hardware

Actual Lengths
6’ Rail: 67.5” (171 cm); 8’ Rail: 91.5” (232 cm)

Trex Transcend® Railing – Accessory Kits

Mounting Hardware for Cut Rails—Horizontal

Contains:
Qty (2) Crown Top Rail Gaskets—Horizontal
Qty (4) Universal Top/Bottom Rail Gaskets—Horizontal
Qty (4) RSB Rail Brackets
Qty (8) Rail to Bracket Fasteners—Horizontal
Qty (8) Rail to Post Fasteners
Qty (4) Screw Tip Covers


Mounting Hardware for Cut Rails—Stair

Contains:
Qty (1) Crown Top 1 Rail Gaskets—Stair
Qty (1) Crown Top 2 Rail Gaskets—Stair
Qty (2) Universal Top/Bottom 1 Rail Gaskets—Stair
Qty (2) Universal Top/Bottom 2 Rail Gaskets—Stair
Qty (8) RSB Rail Brackets
Qty (8) Rail to Bracket Fasteners— Stair
Qty (8) Rail to Post Fasteners
Qty (4) Screw Tip Covers

RSB Bracket Pack—Horizontal

Qty (4) RSB Rail Brackets
Qty (8) Rail to Bracket Fasteners—Horizontal
Qty (8) Rail to Post Fasteners








RSB Bracket Pack—Stair

Qty (8) RSB Rail Brackets
Qty (8) Rail to Bracket Fasteners—Stair
Qty (8) Rail to Post Fasteners





0 Degree Rail Gasket Pack—Horizontal

Qty (2) Crown Top Rail Gaskets—Horizontal
Qty (4) Universal Top/Bottom Rail Gaskets—Horizontal

Trex Select® Classic & Trex Select® T-Rail Railing – GOOD

Our classic black-and-white railing look is perfect for every deck, every budget. A pleasing look backed by trusted performance at a minimal price.

Trex Select® Classic & Trex Select® T-Rail Railing – Color Options:

Trex Select® Classic & Trex Select® T-Rail Railing Components

Both Trex Select Classic and Select T-Rail can be obtained through a 3-step ordering process. Choose Trex post sleeves, caps and skirts (steps 1 & 2) and pair with you favorite Select rail & baluster kit (step 3).

1. Post Sleeve
2a. Post Sleeve Cap
2b. Post Sleeve Skirt
3. Select Rail & Baluster Kit

Trex Select® Classic & Trex Select® T-Rail Railing – Infill Options

Classic Rail with Round Aluminum Balusters

Use for simplified, pre-designed rail applications.

T-Rail with Round Aluminum Balusters

Use for simplified, pre-designed rail applications.

T-Rail with Square Composite Balusters

Use for simplified, pre-designed rail applications.

Trex Select® Classic & Trex Select® T-Rail Railing – Post & Post Components

Post Sleeve

Each 4” x 4” and 6″ x 6″ post sleeve fits over a 4″ x 4″ pressure treated post or equivalent post mount.

6″ Available in Classic White only.

4” X 4” X 39”/108” Actual External Dimension:
4.45” x 4.45” x 40” (113mm x 113mm x 101 cm)
4.45” x 4.45” x 108” (113mm x 113mm x 274 cm)

6” X 6” X 39”/108” Actual External Dimensions:
5.5” x 5.5” x 39” (139 mm x 139 mm x 990 mm)
5.5” x 5.5” x 108” (139 mm x 139 mm x 274 cm)

Post Sleeve Cap

12 per box. The cap topping each post not only serves as a decorative finish but also withstands the weather.

6” Available in Classic White only.

Actual External Dimensions:
4” x 4”: 4.55” x 4.55” (115 mm x 115 mm)
6” x 6”: 5.55” x 5.55 ” (140mm x 140mm)





Post Sleeve Skirt

12 per box. Finishing piece at the base of the post that covers any cuts where the decking and railing meet. Usually coordinates with the cap.

6” Available in Classic White only.

Actual External Dimensions:
4” x 4”: 4.55” x 4.55” (115 mm x 115 mm)
6” x 6”: 5.55” x 5.55” (140mm x 140mm)




Trex Select® Classic & Trex Select® T-Rail Railing – Rails, Balusters & Infill Specs

Classic Rail & Round Aluminum Baluster Kit – Horizontal/Stair

Includes top rail, bottom rail, round aluminum balusters, adjustable foot block, hardware pack.

Dimensions
6’ x 36” Classic Rail & Baluster Kit
8’ x 36” Classic Rail & Baluster Kit
6’ x 42” Classic Rail & Baluster Kit
8’ x 42” Classic Rail & Baluster Kit

*Actual lengths: 6’ Rail: 72” (171 mm); 8’ Rail: 96” (232 mm)

T-Rail & Round Aluminum Baluster Kit – Horizontal/Stair

Includes top rail, bottom rail, round aluminum balusters, adjustable foot block, hardware pack.

Dimensions
6’ x 36” Classic Rail & Baluster Kit
8’ x 36” Classic Rail & Baluster Kit
6’ x 42” Classic Rail & Baluster Kit
8’ x 42” Classic Rail & Baluster Kit

*Actual lengths: 6’ Rail: 72” (171 mm); 8’ Rail: 96” (232 mm)

T-Rail & Square Composite Baluster Kit – Horizontal/Stair

Includes top rail, bottom rail, square composite balusters, adjustable foot block, hardware pack.

Dimensions
6’ x 36” Classic Rail & Baluster Kit
8’ x 36” Classic Rail & Baluster Kit
6’ x 42” Classic Rail & Baluster Kit
8’ x 42” Classic Rail & Baluster Kit

*Actual lengths: 6’ Rail: 72” (171 mm); 8’ Rail: 96” (232 mm)

Trex Select® Classic & Trex Select® T-Rail Railing – Accessories

Mounting Hardware for Cut Rails—Horizontal

Contains:
Qty (8) Bracket to Post Fasteners
Qty (12) Bracket to Rail Fasteners
Qty (4) Railing Brackets


Mounting Hardware for Cut Rails—Stair

Contains:
(8) Bracket to Post Fasteners
(12) Bracket to Rail Fasteners
(4) Railing Brackets
(4) Railing Bracket Stair Adapters

8′ Aluminum T-Rail Stiffener (IRC)

Used to strengthen and stabilize the 8′ rail. IRC-compliant applications only. Compatible with top T-rail only.

Contains:
(1) Aluminum Rail Stiffener

We have everything in stock! We can deliver too!

Call Us At 815-439-DECK (3325) Or Request A Quote!
